Wecon 4.3 inch HMI Standard: LEVI2043E - LEVI2043E
Mã SP: LEVI2043E
Vui lòng gọi...

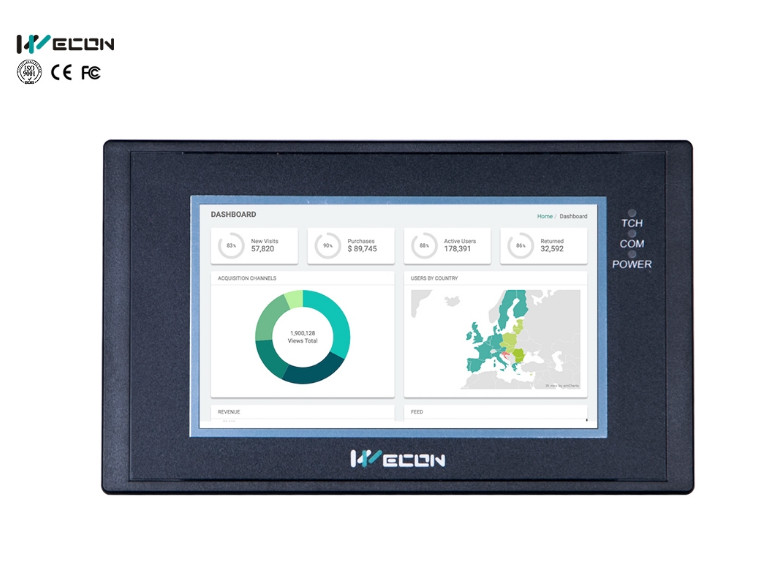

Wecon 4.3 inch HMI Standard: LEVI2043E
◇The thickness: 30.3mm, it is 6.7mm thinner than the model LEVI2043T.
◇Ports use 7P Terminals,which extremely save space.
◇Hardware: CPU 32-bits 300MHZ RISC, 128M FLASH+ 64DDRAM
◇Display size: 4.3 inch
◇Resolution: 480×272 TFT LCD, 65536 colors
◇Interface: Support RS232/RS485/RS422
Bảng thông tin kỹ thuật HMI LEVI2043E
| Model | LEVI2043E | ||
| General | Screen Size | 4.3 Inch | |
| Resolution | 480*272 | ||
| Colors | 65536 colors | ||
| Brightness | 450cd/m2 | ||
| Backlight Type | LED | ||
| Touch Screen | High procision four-wire resistive | ||
|
Backlight Life Time |
50,000 hours | ||
| CPU | 32-bits 300MHz RISC | ||
| Storage | 128M FLASH | ||
| USB Port | Micro USB | ||
| SD card | N/A | ||
| COM | COM1 | RS422/RS48 | |
| COM2 | RS232 | ||
| Power | Power | <5w | |
| Power Supply | DC 24V ( 12~28V DC ) | ||
| Allowed Power Fail | <5ms | ||
| Insulation Resistance | >20MΩ 500V DC | ||
| Withstand Voltage | 500V AC < 1 minute | ||
| Dimension | Shell | ABS,Black | |
| Dimension (mm) | 142.W*86.0H*30.3D | ||
| Mounting size (mm) | 131.0W*78.0H | ||
| Net/Gross (KG) | 0.30 | ||
| Operate Environment | Temperature | Working Temperature : -10~60℃ ; Storage Temperature : -20~70℃ | |
| Humidity | 10~85% RH(Non-condensing) | ||
| Seismic Resistance | 10~25 Hz ( X,Y,Z direction 2G/30 minutes) | ||
| Cooling | Air cooling | ||
| Extension | Ethernet | -- | |
| CAN | -- | ||
| TTS | -- | ||
| COM3 | -- | ||
| Protection | IP65 ( Front panel ) | ||
| CE Certification | CE Certification: CE marked | ||
| FCC Certification | FCC Class A | ||
